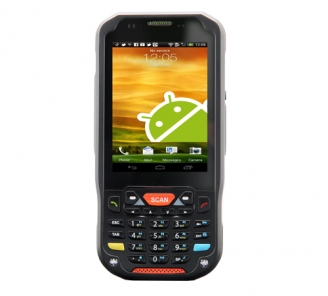

Point Mobile PM60
Rugged Android Scanner
RRP: $1099 ex GST
PM60 is 3.5 inch screen EDA with 3G HSPA+, IEEE 802.11 b/g/n, 1D/2D Barcode Scanner, 5MP Camera, Bluetooth Class II v.2.1+EDR as well as GPS. PM60 can stand up to 1.5m (5 ft) along with IP65 sealing against water/dust. The PM60 is designed for outside-4-wall applications.
FeaturesSpecifications-
Optimize your workforce with maximum outdoor features
PM60 is perfectly designed for outside-4-wall applications with full VGA (480×640), daylight readable & wide viewing angle 3.5" TFT-LCD. Seamless screen will provide comfortable touch and draw with fingertips more than ever.
-
Maximize power and speed with latest micro processor
Adopting the latest Cortex A8 @ 1Ghz processor from TI (Texas Instrument) and 512MB/512MB (RAM/ROM), PM60 will give you maximum power and speed for your field workforces to conduct any complicated job process in the field.
-
Extend your business with two latest Operating System
Now you can choose either Windows Embedded Handheld 6.5 and Android 4.2 Jellybean, and will have hassle-free without constraints between legacy system and any latest client softwares in your working environment.
-
Experience fast & stable wireless communication
3.9G WWAN HSPA+ supports up to 5.76Mbps @ uplink and 14.4Mbps @ downlink. GPS assisted by telco carrier provides you visibility of your workforce location fast and accurately. Wireless LAN supports IEEE 802.11 b/g/n with speed up to 72.2Mbps under 2.4GHz.
-
Enjoy fast barcode scanning and high resolution camera
You can select either a laser scanner or an imager scanner as built-in option. Laser scanner supports all standard 1D symbologies. The imager has laser aimer for easy aiming and can read all standard 1D/2D barcode symbologies and GS1 Databar. Unbeatable 5.0 mega pixel camera provides high resolution picture and video.
-
Robust & rugged spec keep your TCO low and minimize down-time
The PM60 is designed from the ground up for rugged applications. With its IP65 water/dust proof sealing, 1.5m (5 ft) repeated drops to concrete, and wide operating temperature range the PM60 stands up to most any demanding application.
| Physical | |
|---|---|
| Dimensions | 156.9 × 75.6 × 25.8 mm |
| Weight | 305g with 4,000mAh battery |
| Environmental | |
| Operating temp | -20°C to 60°C |
| Storage temp | -40°C to 70°C |
| Humidity | Non-condensing, 95% |
| Rain & dust | IP65 |
| Drop spec | 1.5m per MIL-STD 810G |
| Tumble spec | 500 cycles (1,000 hits) @ 1m tumble |
| ESD | ±15 kV air / ±8 kV contact |
| Power | |
| Battery | 3.7V, 4,000mAh Li-Ion, removable, rechargeable (IEEE 1725 Compliant) |
| System | |
| OS | Windows Embedded Handheld 6.5 Professional / Android 4.2 Jellybean |
| CPU | TI Cortex A8 @ 1GHz |
| RAM | 512MB |
| ROM | 1GB NAND Flash / MicroSD up to 32GB SDHC |
| Display | |
| Display | 3.5", 480×640 VGA, TFT-LCD, 600 NITs, daylight readable, resistive touch |
| Communication | |
| USB | Full speed USB 2.0 from cradle or direct sync cable |
| Camera | 5.0MP fixed focus with flash |
| Keypad | Numeric (27 key) or QWERTY (45 key) with backlight |
| Wireless WWAN | |
| UMTS frequencies | 800, 900, 1900, 2100MHz |
| GSM/GPRS | 850, 900, 1800, 1900MHz |
| Technology | 3.9G HSPA+ — Up: 5.76Mbps / Down: 14.4Mbps |
| Wireless LAN | |
| WLAN | IEEE 802.11 b/g/n — 11, 54, 72.2 Mbps |
| Security | WEP/WPA/WPA2; PEAP/MS-CHAPv2, EAP-TLS |
| Wireless PAN | |
| Bluetooth | Class II, Version 2.1+EDR |
| Other | |
| GPS | 12 channel integrated GPS, A-GPS ready, accuracy within 3m |
| Barcode scanner | 1D Laser Scanner / 2D Imager — all standard 1D/2D symbologies including GS1 Databar |
| Certifications | FCC, CE, KCC, ANATEL; RoHS & WEEE compliant |
