RRP: $899 ex GST (Linear scanner)

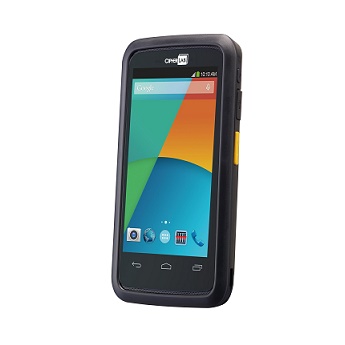

CipherLab has manufactured the RS30 series to satisfy the needs of the customer-facing mobile workers in field sales, field service, retail and healthcare industries. The RS30 series touch mobile computer is a rugged smart device of which the touch-centric user interface is just like any other smartphone. Additionally, the ruggedness of the RS30 series safely protects its powerful features from harsh environments. Moreover, the RS30 series is capable of operating over a shift without worrying about insufficient battery life. Simply put, the RS30 is a full function touch mobile computer which is designed with the enterprise' needs in mind.
FeaturesSpecificationsThe RS30 series touch mobile computer is a touch-centric smartphone with built-in multi-touch panel operating on the Android 4.4 operating system. This ensures minimal training for the users because the user experience would be as similar as a personal smartphone. Its high sensible touch panel supports users' touch from bare fingertips to latex gloves. The RS30 series also includes a large 4.7" display which supports more viewable data to speed up information checking and responses to customer requests. The RS30 series weighs in at only 260 grams so there are no burdens on users mobility.
RS30 touch mobile computer is under the full protection of CipherLab's rugged designs to safeguard its powerful features. It has an IP54 rating to safely sustain operation under rain and dust in the field. The CipherLab RS30 series is capable of sustaining 1.2 m drops and 150 tumbles at 0.5 m. Users also have the choice to equip an optional protective boot which can advance the RS30's ruggedness to sustain 1.5 m drops and 500 tumbles at 0.5 m. Moreover, the operating temperature range of the RS30 is widened compared to typical smartphones so it could operate efficiently in hot or cold weathers. Its multi-touch panel is built with Corning® Gorilla® Glass 3 which has high resistance from scratches. The RS30 can be safely carried around in pockets along with coins and keys without any worries.
The RS30 series offers reliable WiFi to ensure accurate data transmission and real time communication. It supports quick roaming and reconnection to eliminate data loss while transmitting data. The 3.8G HSPA+ wireless connectivity also provides quality data transmission in the field. Besides, the CipherLab RS30 series' backup battery with hot swap function ensures that the collected data will not be lost when the main battery is drained.
CipherLab's RS30 series offers data capturing through CCD, laser and 2D readers to efficiently capture 1D and 2D barcodes within four walls and under sunlight. The RS30 is equipped with Near Field Communication (NFC) to enable peer to peer data communication and simplify device upgrade and management. It also supports RFID tag reading in short distances. The built-in SAM slot allows data encryption to ensure security while using NFC for payment applications.
The RS30 tough mobile computer is equipped with reader configuration and button assignment that make the device setting flexible and efficient. In addition, it also includes 3rd party programming software tools in KALIPSO Mobility Application Generator and SOTI MobiControl to fully customize the RS30 to specific demands.
A third party application generator software tool designed for Windows® and Android-based mobile computers, KALIPSO Mobile Application Generator helps users customize application needs effortlessly. With free demo programs such as inventory check, order entry, and proof-of-delivery, users could start the applications right away.
SOTI MobiControl enables access to a robust set of features that support remote device management without requiring the mobile devices to be brought back to the office.
Simplify the development processing using Apache Cordova.
Checkout our plugin: https://github.com/mribbons/cordova-plugin-cipherlab-rs30
| Performance | |
|---|---|
| Operating system | Android 4.4 |
| CPU | Cortex 1.3 GHz Quad Core Processor |
| Memory | 8GB Flash / 1GB RAM |
| Expansion | Micro SD card slot with SDHC support (up to 32GB) |
| SIM / SAM | 2 SIM slots and 1 SAM slot |
| Operating power | Replaceable and rechargeable 3.7V 2500 mAh Li-ion battery |
| Working hours | 10 hours (Minimum 10 hours under WLAN and laser scanning per 20 seconds, LCD 50% 802.11 b/g/n on.) |
| Alert | Tri-color LEDs, vibrator, speaker |
| Interface | USB 2.0 OTG and charging contact |
| Wireless Communication | |
| WWAN | GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+ — 850/900/1800/1900 MHz; UMTS/HSDPA/HSUPA: 850/900/1900/2100 |
| WLAN | IEEE 802.11 b/g/n |
| WLAN security | WPA (PSK), WPA2 (PSK), WEP, TKIP, AES, EAP (MD5 CHAP, MS CHAP V2, TLS, PEAP) |
| WPAN | Bluetooth® Class II, V4.0, V2.1 with Enhanced Data Rate (EDR) |
| GPS | GPS, integrated with A-GPS ready |
| Data Capture | |
| Barcode scanning | Linear imager / Laser* / 2D imager* — *Listed price is for Linear imager only. |
| RFID | HF RFID 13.56 MHz — ISO14443A, ISO14443B, ISO15693; NFC (Peer-to-Peer, Card Reader, Card Emulation) |
| Camera | Autofocus 8 megapixels with user-controllable flash |
| Physical Characteristics | |
| Display | 4.7" qHD 540×960, 510 NITS, IPS LCD, Corning Gorilla Glass 3 |
| Touch panel | Capacitive touch with fingertip (bare or latex gloved) input |
| Keypad | Dedicated scan key, 4 programmable keys, volume up/down, left/right trigger keys |
| Audio | Speaker, dual array digital microphones with echo and noise cancellation |
| Size | 155 × 80 × 17.3 mm |
| Weight | 260 g with battery |
| User Environment | |
| Operating temp | -20°C to 50°C |
| Storage temp | -30°C to 70°C |
| Humidity | Operating 10–90% / Storage 5–95% |
| Drop resistance | SGS certified 1.2 m drops / IP54 / 150 tumbles at 0.5 m; with boot: 1.5 m / 500 tumbles |
| ESD | ±15 kV air / ±8 kV contact |
| Certifications | CE, RoHS, REACH, WEEE, ErP, RCM, NCC, FCC, JRL, TBL, CTA |
| Miscellaneous | |
| Accessories | Charging cradle, USB snap-on cable, micro USB cable, protective boot |
| Warranty | 1 year |
